GDBW high speed single-wall
corrugated pipe production line
This production line can be
used to produce PP,PE,PVC,EVA,PA etc. single-wall corrugated pipes
continuously. Plastic single wall corrugated pipes have features of strong
thermostability, corrosion resistance, abrasion resistance, high intensity,
good flexibility, etc. They are widely applied in many fields such as
electrical thread-passing pipes, circuit of machine tool, protective pipe of
lamps, water pipes in air conditioner, washing machine, bathroom, etc.

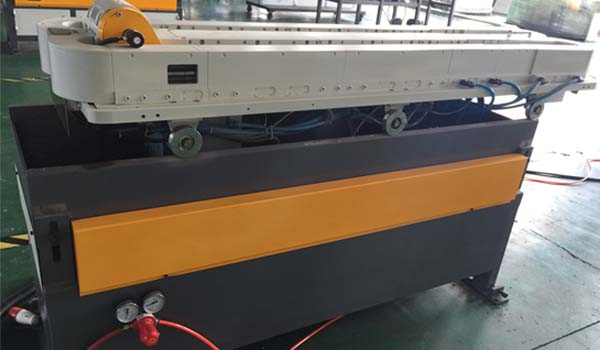

GSDBGZ high speed single-wall
corrugated pipe machine is developed on the basis of our original single-wall
corrugated pipe machine. The moulds are moved by gear on the runway. It is
equipped with specially designed water cooling sealing system, and the
lubrication oil can be injected automatically. In the forming machine, for small
sizes mould, it can be set with two mould chambers which can make two different
sizes of pipes only by adjusting the height of forming machine automatically.
All these features improve the production speed of single wall corrugated pipes
to a great extent, which can reach 20-25m/min. Besides, the production line is
equipped with pre-stress eliminating cooling device, automatic tapping machine
in production line and automatic coiling machine, and it is especially suitable
for the production of car harness corrugated pipes.
